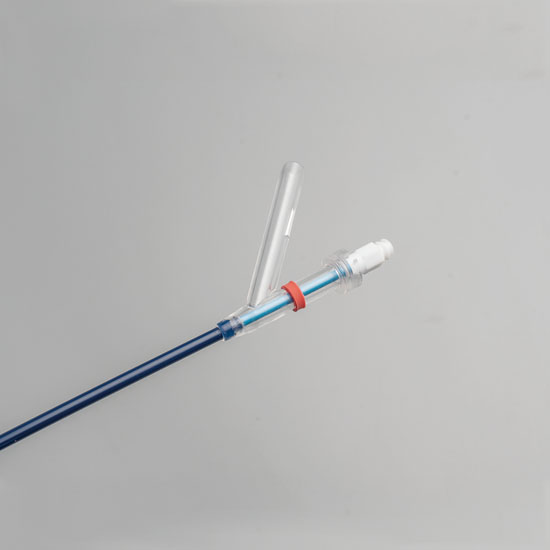

Y-type Ureteral Access Sheath

Designed for the effective and efficient treatment of urinary stones using negative pressure
aspiration through an oblique side port.
It has high stone clearance rate, reduces the intra-luminal pressure in the urinary tract, prevents
stone retropulsion, improves visual field, obviates the need of stone baskets, forceps, or any
anti-retropulsion devices, and saves operating time. Under the Negative Pressure Aspiration, the
stone fragments are evacuated spontaneously.
New

Y Suction Sheath

Cat. No Sheath Inner Sheath Outer Length
408 10 35 2 10Fr 12Fr 35cm
408 11 35 2 11Fr 13Fr 35cm
408 12 35 2 12Fr 14Fr 35cm
408 13 35 2 13Fr 15Fr 35cm
408 14 35 2 14Fr 16Fr 35cm
408 10 45 2 10Fr 12Fr 45cm
408 11 45 2 11Fr 13Fr 45cm
408 12 45 2 12Fr 14Fr 45cm
408 13 45 2 13Fr 15Fr 45cm
408 14 45 2 14Fr 16Fr 45cm

Bendable Suction Sheath

Cat. No.  Sheath Inner  Sheath Outer Length
408 10 35 2B 10Fr 12Fr 38cm
408 11 35 2B 11Fr 13Fr 38cm
408 12 35 2B 12Fr 14Fr 38cm
408 13 35 2B 13Fr 15Fr 38cm
408 14 35 2B 14Fr 16Fr 38cm
408 10 45 2B 10Fr 12Fr 48cm
408 11 45 2B 11Fr 13Fr 48cm
408 12 45 2B 12Fr 14Fr 48cm
408 13 45 2B 13Fr 15Fr 48cm
408 14 45 2B 14Fr 16Fr 48cm

Drainage Bottle

Cat. No. Capacity
410 01 14 2 140 ML
410 01 20 2 200 ML
410 01 25 2 250 ML
